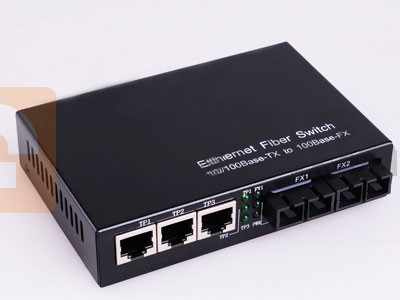

10/100M Ethernet Fiber Media Converter 3*UTP +1*MMF Port +1*SMF Port

Payment:
Paypal or Credit/debit card
Wire Transfer, West Union | See details
Returns:
Satisfactory return or item exchange | See details
Guarantee:
Money back guarantee | See details
Warranty:
Limited Warranty | See details
Volume pricing:
If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
SKU#:COV-SF05MS
Price:
$64.00
Quick Overview:
Link Port optional: 3*UTP + 1*MMF Port + 1*SMF Port
Power Cord connector optional according to your demands
10/100M, Fast Ethernet
Lead time = 1-5 Days
10Gtek Made in China.

* Required Fields

Qty:

10/100M Ethernet Fiber Media Converter 3*UTP +1*MMF Port +1*SMF Port

  • 10/100M Ethernet Fiber Media Converter 3*UTP +1*MMF Port +1*SMF Port
Processing Time
Processes in 24 hours: Processing Time is guaranteed to be shorter.
Typical Processing Time: 1-2 weeks
Shipping Time
FedEx Overnight: Within 1-4 business days
DHL: Within 2-6 business days
EMS: Within 4-15 business days
UPS: Within 2-5 business days
Hong Kong Post Airmail: Within 10-30 business days
Payment Methods
FiberOnSale FiberOnSale FiberOnSale
FiberOnSale Paypal western
Wire Transfer
10/100M Ethernet Fiber Media Converter 3*UTP +1*MMF Port +1*SMF Port
There are two 100M Fiber Ports and three 10/100M UTP Ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet as Fiber Repeaters or Ethernet single / multimode fiber converters, and other special requirements of the environment.

Product Description:
● It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interfaces (FX). The conversion of optical signals can be carried out between multi/multimode optical fiber, between single/multimode optical fiber or between single/singlemode optical fiber.
● UTP port supports MDI / MDI-X auto crossover
● Broadcast storm protection
● Supporting the max 1916 bytes frame
● Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
● Connector
UTP: RJ-45,10/100Mbps
Fiber: ST/SC/FC,100Mbps (Full Duplex)
● Cable
UTP: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
● Flow Control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
● Power supply: AC110 ~ 240V
● Environment temperature: 0 ~ +50℃
● Storage temperature: -20 ~ +70℃
● Humidity: 5% ~ 90%
● Dimensions: 180*45*143mm
