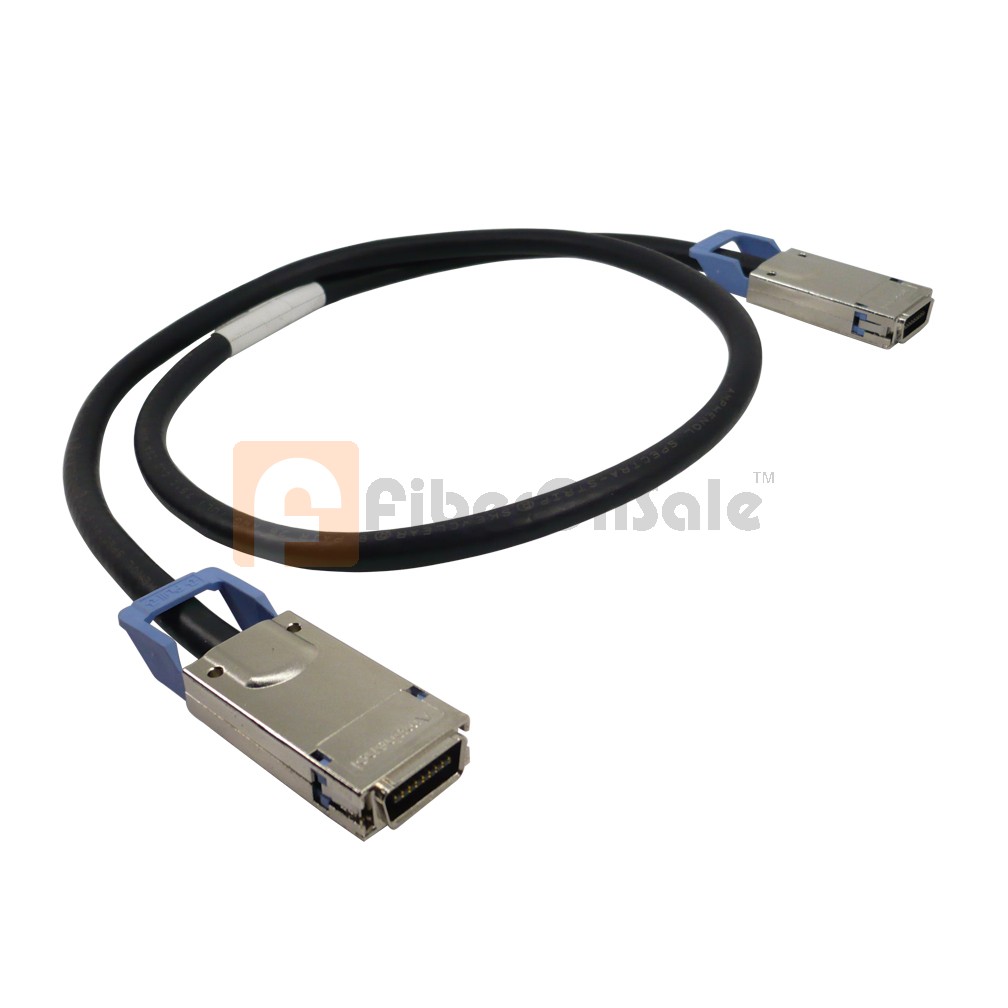

1m AWG28 10GBase CX4 Cable

Be the first to review this product

Availability: In stock

$50.00
OR

Quick Overview

● Lead Time: 1~3 days
● Compatible with: 3Com 3C17776, HP 444477-B22, Cisco CAB-INF-28G-1=, Belkin CX4-1M, IBM 45W2821, Qlogic 7104-1M-CABLE…
● 10Gtek Made in China.

Details

10GBase-CX4 is an IEEE specification for 10 Gigabit over coaxial cable, intended to connect servers, switches and storage over short distances of up to 15 metres/50 feet. 10GBase-CX4 or 802.3ak uses the Infiniband 4X connector to maximize signal strength and can support data transfers of up to 10 Gigabits per second, 10 times as fast as gigabit Ethernet. It combines low cost cables and equipment with high speed for short distance connections. Applications include inter-switch, switch to server and storage CX4 Cables are tested to a higher test standard than are InfiniBand cables.Therefore, CX4 cables are backwards compatible to Infinband, but Infiniband cables do not necessarily meet CX4 test standards. Specifications: ● CAB-INF-28G-1 ● CX4(SFF-8470) to CX4(SFF-8470) ● 1 Meter ● AWG28/AWG30 ● 10GBase-CX4 / 802.3ak complaint ● Infiniband compatible Compatible: ● 3Com 3C17776, ● HP 444477-B22, ● Cisco CAB-INF-28G-1=, ● Belkin CX4-1M, ● IBM 45W2821, ● Qlogic 7104-1M-CABLE

Additional Information

product_view_right_contents No
Compatible Brands No
Cable Connect Type No
Cable Length 1M
Wire Size AWG AWG28
Cable Options No
Data Rate No
Cable Connector No
Length No
Cable Type No
