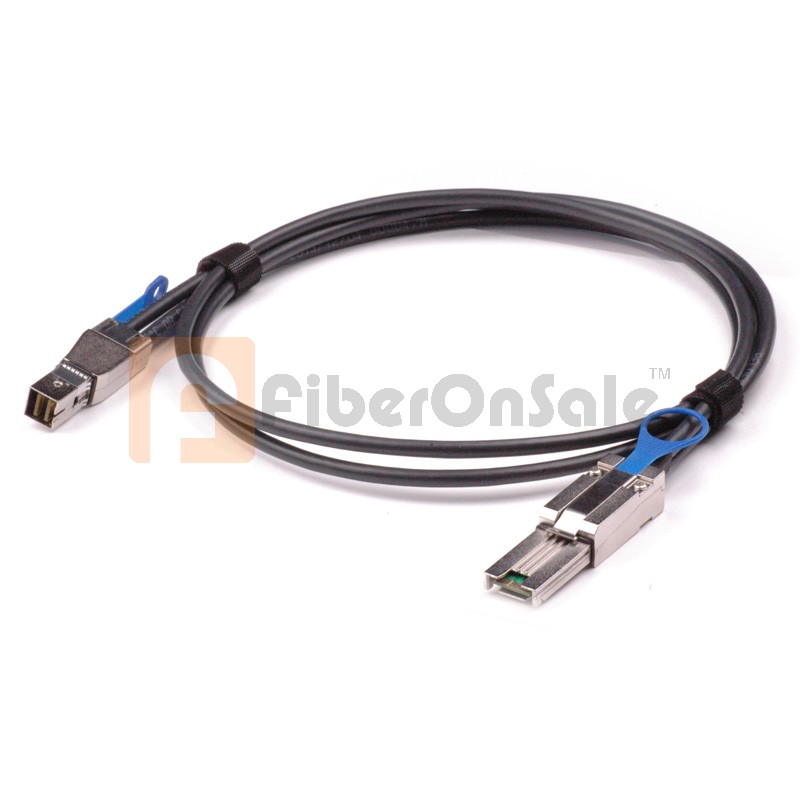

5M(16.5ft) 4x Mini-SAS HD (SFF-8644) to 4x Mini-SAS 26-pin (SFF-8088) Hybrid Cable

Availability: In stock

Regular Price: $106.00

Special Price: $69.00


Quick Overview

External 4x Mini-SAS to HD Mini-SAS Hybrid Cable - [30 AWG] - 6 Gbps SAS 2.1 & iPass+ HD Compliant


10Gtek 5m (16.5 ft) External 4x Mini-SAS (SFF-8088) to HD Mini-SAS (SFF-8644) Cables function as a "Hybrid Cable"; thus permitting the installer to link up legacy Mini-SAS devices with the latest generation of Mini-SAS HD (High Density) hardware. This 4x HD Mini-SAS to Mini-SAS cable features a universal keyed SFF-8644 pull to release lanyard connector on one end and a universal keyed SFF-8088 pull-to-release lanyard connector on the other, each of which are fully intermateabie with ANY manufacturer's 4x iPass+ HD (Mini-SAS HD) and 26-pin Mini-SAS receptacle ports. Due to Amphenol's technological lead on high-speed over copper, our HD Mini-SAS cable assemblies are thinner (i.e. 30 AWG) and more flexible than competing HD Mini-SAS products -- providing convenient routing options and improved airflow while exceeding the performance parameters of a thicker grade cable (i.e. 28 AWG). 1m (3.3 ft) length. Also available in 2m (6.6 ft) and 3m (9.9 ft) and 5m (16.5 ft) lengths. Specifications: ● External 4x Mini-SAS HD to Mini-SAS hybrid cable assembly - 5m (16.5 ft) ● Guaranteed SAS 2.1 drive performance at 6.0 Gbps data rates per lane ● SFF-8644 (4x HD Mini-SAS) to SFF-8088 (4x Mini-SAS) connectors ● All connectors feature universal keying with pull-to-release lanyards ● 30 AWG Twinaxial SKEWCLEAR 8-pair high-bandwidth low-skew wire ● External cabling solution for connecting Mini-SAS to HD Mini-SAS devices ● Zinc Die-Cast connector housings for excellent durability & EMI resistance ● Precision matched impedance design (100 Ohm +/- 20%) ● Mating Durability: 250 cycles minimum / 500 cycles nominal ● Maximum Voltage Rating: 30V AC ● Maximum Current Rating: 500 mA AC ● Temperature Handling: Tested to 105℃ for 72 hours ● Insertion Loss: No more than 6.0 dB max at 4.5 GHz ● Fully compliant to the latest SAS 2.1 AND SAS 3.0 interface specifications ● Subject to Serial Attached SCSI 6.0 Gbps test certification before shipment ● Components are UL listed ● Also available in 1m (3.3 ft) and 2m (6.6 ft) and 3m (9.9 ft) lengths ● RoHS compliant cable design meets environmental standards

Additional Information

product_view_right_contents No
Compatible Brands No
Cable Connect Type No
Cable Length 5M
Wire Size AWG AWG30
Cable Options SFF-8644 to SFF-8088
Data Rate No
Cable Connector No
Length No
Cable Type No
