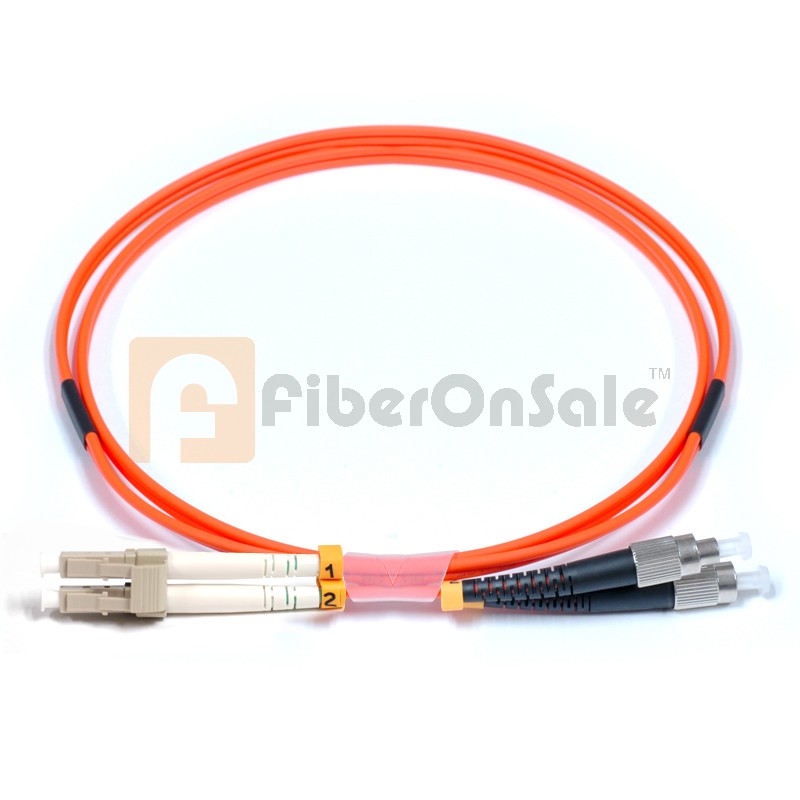

FC-LC Duplex OM1 62.5/125 Multimode Fiber Patch Cable

Availability: In stock

$8.90

Quick Overview

FC to LC Multimode Duplex OM1 62.5/125
$8.90

Details

Specifications: ● FC to LC, Duplex ● MMF,OM1(62.5/125μm) ● Cable Diameter: 0.9mm / 2.0mm / 3.0mm (Price is same for the 3 diameters. You can specify your requirements in your order comments.) ● Polish: UPC/PC Performance index:
Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss
(typical)
dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating
wavelength
nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating
temperature
-40~75 -40~75 -40~75 -40~75
Storage
temperature
-45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9

Additional Information

product_view_right_contents No
Fiber Type Duplex
Polish UPC to UPC
LC Connector LC-FC
FC Connector FC-LC
SC Connector No
ST Connector No
MTRJ Connector No
MU Connector No
E2000 Connector No
