LSI SAS 3442E-R

LSI SAS 3442E-R

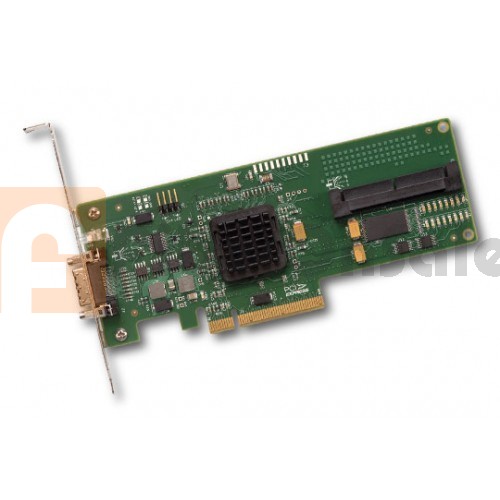

LSI SAS 3442E-R HOST BUS ADAPTER

PCI Bus: 8-lane, 2.5Gb/s PCI Express
PCI Modes: Bus Master DMA
PCI Card Type: 3.3 Volt Add-in Card
PCI Voltage: +12V ±10%
PCI Form Factor: 6.6” x 2.5” (MD2 Low-Profile)
PCI Power: 7.5W
Bracket: Full Height and Low Profile
PCI Certification: PCI Express 1.0a
I/O Bus: Two x4 3Gb/s SAS/SATA Ports
SAS Controller: LSISAS1068E
Connectors
Internal: One SFF8484 SAS Connector
External: One SFF8470 SAS Connector
LED Indicators: Activity per PHY (8) Fault per PHY (8)
Integrated Mirroring?: Integrated RAID 0, 1, 1E and 10E
Environments Operating: 0°C to 60°C, 5 to 90% Non-condensing
Storage: -45°C to 105°C, 5 to 90% Non-condensing
MTFB: >200,000 Hours
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950
OS Support Microsoft Windows 2000, Server 2003 32-bit and 64-bit (x86 and AMD64), XP, Red Hat Linux RHEL 3, Novell NetWare 5.1 and 6.5, SuSE Linux/SLES, Sun SPARC Solaris 2.6 thru 2.10
