CWDM MUX DEMUX

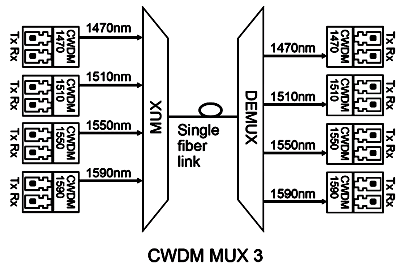

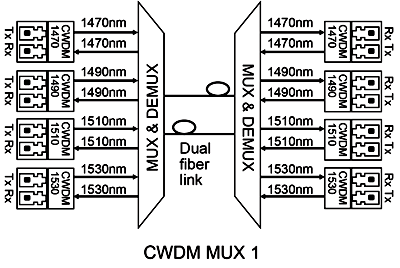

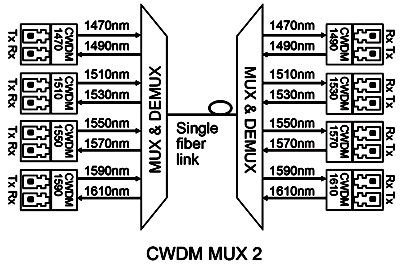

CWDM MUX/DEMUX (Coarse Wavelength Division Multiplexer/Demultiplexer) is a flexible and low-cost solution that enables the expansion of existing fiber capacity. Coupled with highly reliable passive optics certified for environmentally hardened applications, the CWDM MUX/DEMUX solution lets operators make full use of available fiber bandwidth in local loop and enterprise architectures. Our CWDM MUX/DEMUX modules split up to 18 channels (20 nm spaced) to a single fiber. The standard packages are ABS Plastic Box, 19" Rack Mount Chassis and LGX Metal Box. No matter what kind of connectors (such as FC, ST, SC, LC, etc.) are all available, and we can also mix connectors on one device.

Total: 41 Items

  1. 1
  2. 2
  3. Prev
  • Images
  • Delivery
  • Price
  • Qty
  1. 2 Channels CWDM MUX/DEMUX, Monitor Port, IL=1.25dB, LC
    Dual Fiber 2 Channels Dual Fiber customized LC + Monitor
    1-2 Week
    $139.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  2. 4 Channels CWDM MUX/DEMUX, 1510nm to 1570nm, Monitor Port, 1310nm Port, IL=2.0dB, LC
    Dual Fiber 4 Channels Dual Fiber 1510~1570nm LC +1310nm window + Monitor
    $240.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  3. 4 Channels CWDM MUX/DEMUX, 1470nm to 1530nm, Monitor Port, 1310nm Port, IL=2.0dB, LC
    Dual Fiber 4 Channels Dual Fiber 1470~1530nm LC +1310nm window + Monitor
    $240.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  4. 8 Channels CWDM MUX/DEMUX, 1270nm to 1410nm, Monitor Port, 1550nm Port, IL=3.0dB, LC
    Dual Fiber 8 Channels Dual Fiber 1270~1410nm LC +1550nm window + Monitor
    $401.50
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  5. 8 Channels CWDM MUX/DEMUX, 1270nm to 1350nm, 1410nm to 1450nm, Monitor Port, 1550nm Port, IL=3.0dB, LC
    Dual Fiber 8 Channels Dual Fiber 1270~1350nm 1410~1450nm LC +1550nm window + Monitor
    $401.50
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  6. 8 Channels CWDM MUX/DEMUX, 1270nm to 1430nm, Monitor Port, 1550nm Port, IL=3.0dB, LC
    Dual Fiber 8 Channels Dual Fiber 1270~1430nm LC +1550nm window + Monitor
    $401.50
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  7. 8 Channels CWDM MUX/DEMUX, 1470nm to 1610nm, Monitor Port, 1310nm Port, IL=3.0dB, LC
    Dual Fiber 8 Channels Dual Fiber 1470~1610nm LC +1310nm window + Monitor
    $401.50
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  8. 4 Channels CWDM MUX/DEMUX, 1290nm to 1350nm, Monitor Port, IL=1.75dB, LC
    Dual Fiber 4 Channels Dual Fiber 1290~1350nm LC + Monitor
    $220.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  9. 4 Channels CWDM MUX/DEMUX, 1270nm to 1330nm, Monitor Port, IL=1.75dB, LC
    Dual Fiber 4 Channels Dual Fiber 1270~1330nm LC + Monitor
    $220.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  10. 4 Channels CWDM MUX/DEMUX, 1550nm to 1610nm, Monitor Port, 1310nm Port, IL=2.0dB, LC
    Dual Fiber 4 Channels Dual Fiber 1550~1610nm LC +1310nm window + Monitor
    $240.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  11. 4 Channels CWDM MUX/DEMUX, 1270nm to 1330nm, Monitor Port, 1550nm Port, IL=2.0dB, LC
    Dual Fiber 4 Channels Dual Fiber 1270~1330nm LC +1550nm window + Monitor
    $240.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  12. 4 Channels CWDM MUX/DEMUX, Monitor Port, IL=1.75dB, LC
    Dual Fiber 4 Channels Dual Fiber customized LC + Monitor
    $220.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  13. 8 Channels CWDM MUX/DEMUX, Monitor Port, IL=2.75dB, LC
    Dual Fiber 8 Channels Dual Fiber customized LC + Monitor
    $381.60
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  14. 16 Channels CWDM MUX/DEMUX, Monitor Port, IL=3.75dB, LC
    Dual Fiber 16 Channels Dual Fiber customized LC + Monitor
    $744.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  15. 2 Channels CWDM MUX/DEMUX, IL=1.0dB, LC
    Dual Fiber 2 Channels Dual Fiber customized LC
    $101.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  16. 4 Channels CWDM MUX/DEMUX, IL=1.5dB, LC
    Dual Fiber 4 Channels Dual Fiber customized LC
    $190.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  17. 8 Channels CWDM MUX/DEMUX, IL=2.5dB, LC
    Dual Fiber 8 Channels Dual Fiber customized LC
    $351.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  18. 16 Channels CWDM MUX/DEMUX, IL=3.5dB, LC
    Dual Fiber 16 Channels Dual Fiber customized LC
    $713.40
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  19. 4 Channels CWDM MUX/DEMUX, 1290nm to 1350nm, Monitor Port, 1550nm Port, IL=2.0dB, LC
    Dual Fiber 4 Channels Dual Fiber 1290~1350nm LC +1550nm window + Monitor
    $240.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  20. 4 Channels CWDM MUX/DEMUX, 1550nm to 1610nm, Monitor Port, IL=1.75dB, LC
    Dual Fiber 4 Channels Dual Fiber 1550~1610nm LC + Monitor
    $220.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  21. 4 Channels CWDM MUX/DEMUX, 1510nm to 1570nm, Monitor Port, IL=1.75dB, LC
    Dual Fiber 4 Channels Dual Fiber 1510~1570nm LC + Monitor
    $220.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  22. 4 Channels CWDM MUX/DEMUX, 1470nm to 1530nm, Monitor Port, IL=1.75dB, LC
    Dual Fiber 4 Channels Dual Fiber 1470~1530nm LC + Monitor
    $220.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  23. 4 Channels CWDM MUX/DEMUX, 1470nm to 1530nm, IL=1.5dB, LC
    Dual Fiber 4 Channels Dual Fiber 1470~1530nm LC
    $190.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  24. 8 Channels CWDM MUX/DEMUX, 1270nm to 1410nm, IL=2.5dB, LC
    Dual Fiber 8 Channels Dual Fiber 1270~1410nm LC
    $351.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
  25. 8 Channels CWDM MUX/DEMUX, 1270nm to 1350nm, 1410nm to 1450nm, IL=2.5dB, LC
    Dual Fiber 8 Channels Dual Fiber 1270~1350nm 1410~1450nm LC
    $351.00
    If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
