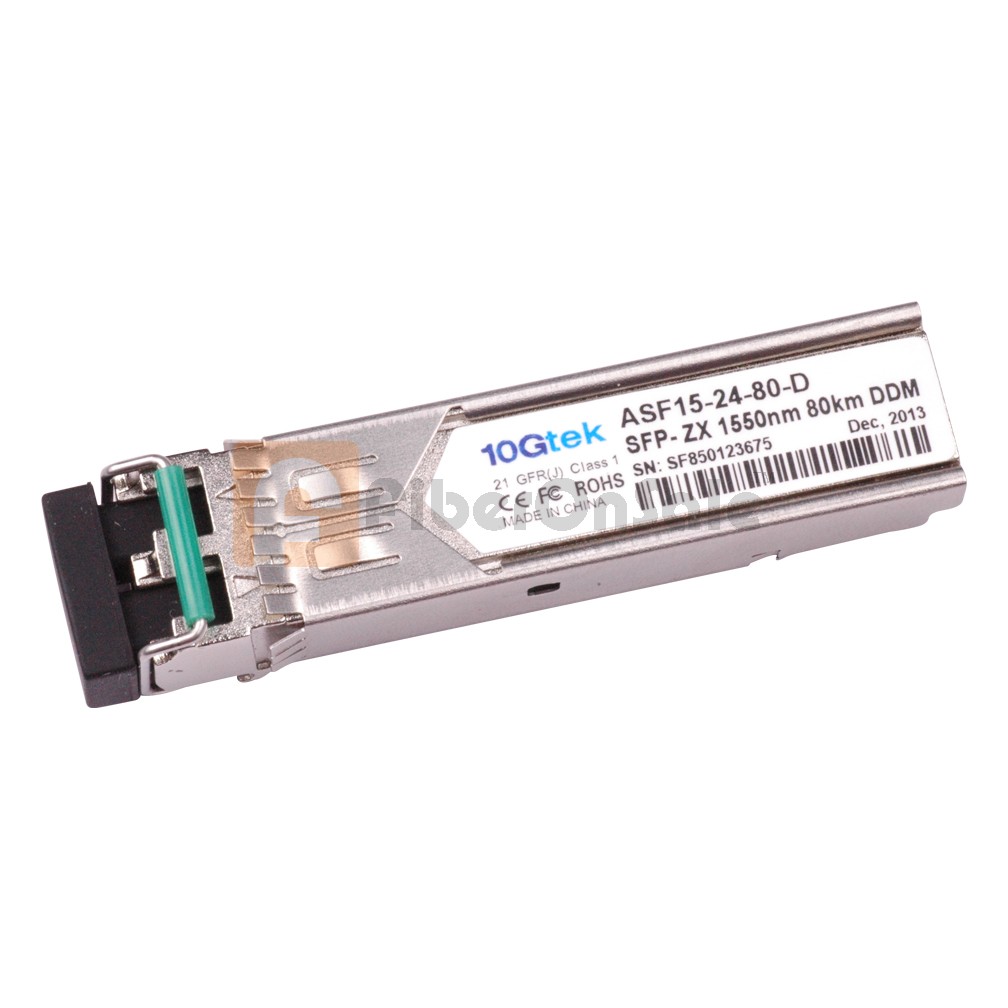

1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module

Payment:
Paypal or Credit/debit card
Wire Transfer, West Union | See details
Returns:
Satisfactory return or item exchange | See details
Guarantee:
Money back guarantee | See details
Warranty:
Limited Warranty | See details
Volume pricing:
If you need large order volume, please apply for a business account or contact us to enjoy preferential policies.
SKU#:ASF15-24-80-D
Price:

$75.00

$66.00

Quick Overview:
Lead time= 1-2 Days
Compatible with: Cisco, HP, Juniper, Extreme, Allied Telesis, Foundry, Force10, Alcatel-Lucent...and more
Warranty: 3-Year

Maximum number of characters: 10

Qty:

1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module

  • 1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module
    1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module
    1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module
    1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module
    1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module
    1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module
Processing Time
Processes in 24 hours: Processing Time is guaranteed to be shorter.
Typical Processing Time: 1-2 weeks
Shipping Time
FedEx Overnight: Within 1-4 business days
DHL: Within 2-6 business days
EMS: Within 4-15 business days
UPS: Within 2-5 business days
Hong Kong Post Airmail: Within 10-30 business days
Payment Methods
FiberOnSale FiberOnSale FiberOnSale
FiberOnSale Paypal western
Wire Transfer
1000BASE-ZX SFP 1550nm 80km EXT DDM Transceiver Module
The IEEE 802.3z standard includes 1000BASE-SX for transmission over multi-mode fiber, 1000BASE-LX for transmission over single-mode fiber, 100BASE-FX is a version of Fast Ethernet over optical fiber. It uses a 1300 nm near-infrared (NIR) light wavelength transmitted via two strands of optical fiber, one for receive(RX) and the other for transmit(TX), 100BASE-SX is a version of Fast Ethernet over optical fiber. It uses two strands of multi-mode optical fiber for receive and transmit. Fiberonsale.com is produce complete range for FE and GE optical fiber transceivers.

Fiberonsale.com offers the full line of SFP Ethernet transceivers for the applications of 100-155Mb/s and 1.25Gb/s, including:

SFP-SX MM 550M
SFP-LX SM 10-20KM
SFP-EX SM 40KM
SFP-ZX SM 80KM
SFP-EZX SM 120KM
SFP-CWDM
SFP-DWDM
SFP-BIDI

Product Description:
● Operating Data Rate up to 1.25Gbps
● 1550nm DFB Laser Transmitter
● 80km with 9/125 μm SMF
● Single 3.3V Power Supply and TTL Logic Interface
● Hot-Pluggable SFP Footprint Duplex LC Connector Interface
● Class 1 FDA and IEC60825-1 Laser Safety Compliant
● With DDM
● Compliant with MSA SFP Specification
● Compliant with SFF-8472
● Operating Case Temperature Standard:0℃~+70℃

Applications:
● Gigabit Ethernet
● Fiber Channel
● Other Optical Links
Features:
  • Operating Data Rate up to 1.25Gbps
  • 1550nm DFB Laser Transmitter
  • 80km with 9/125 μm SMF
  • Single 3.3V Power Supply and TTL Logic Interface
  • Hot-Pluggable SFP Footprint Duplex LC Connector Interface
  • Class 1 FDA and IEC60825-1 Laser Safety Compliant
  • With DDM
  • Compliant with MSA SFP Specification
  • Compliant with SFF-8472
  • Operating Case Temperature Standard:0ºC~+70ºC
Applications:
  • Gigabit Ethernet
  • Fiber Channel
  • Other Optical Links
Order Information:
Part Number Description Data Rate Wavelength Reach Fiber Type TX Power (dBm) Rx Sens. (dBm) DDM/DOM Temp. Range(°C)
ASF-GE-T 1000Base-T SFP GE CAT5 Copper 100M 1.25Gbps   100 m CAT5     No 0~70
ASF85-24-X2 1000Base-SX SFP 850nm 550M 1.25Gbps 850nm 550 m MMF -8 ~ - 4 ﹤ -18 Optional 0~70
ASF13-24-10 1000Base-LX SFP 1310nm 10KM 1.25Gbps 1310nm 10 km SMF -10 ~ - 3 ﹤ -22 Optional 0~70
ASF13-24-20 1000Base-LX SFP 1310nm 20KM 1.25Gbps 1310nm 20 km SMF -9~-3 ﹤ -22 Optional 0~70
ASF13-24-40 1000Base-EX SFP 1310nm 40KM 1.25Gbps 1310nm 40 km SMF -4~0 ﹤ -22 Optional 0~70
ASF15-24-40 1000Base-EX SFP 1550nm 40KM 1.25Gbps 1550nm 40 km SMF -4~0 ﹤ -22 Optional 0~70
ASF15-24-80 1000Base-ZX SFP 1550nm 80KM 1.25Gbps 1550nm 80 km SMF 0~4 ﹤ -25 Optional 0~70
ASF15-24-120 1000Base-EZX SFP 1550nm 120KM 1.25Gbps 1550nm 120 km SMF 1~5 ﹤ -30 Optional 0~70
ABL34-24-02 1.25Gb/s BiDi SFP Tx1310/Rx1490nm 2KM 1.25Gbps Tx1310/Rx1490nm 2 km SMF     Optional 0~70
ABL43-24-02 1.25Gb/s BiDi SFP Tx1490/Rx1310nm 2KM 1.25Gbps Tx1490/Rx1310nm 2 km SMF     Optional 0~70
ABL34-24-20 1.25Gb/s BiDi SFP Tx1310/Rx1490nm 20KM 1.25Gbps Tx1310/Rx1490nm 20 km SMF -9~-3 ﹤ -22 Optional 0~70
ABL43-24-20 1.25Gb/s BiDi SFP Tx1490/Rx1310nm 20KM 1.25Gbps Tx1490/Rx1310nm 20 km SMF -9~-3 ﹤ -22 Optional 0~70
ABL34-24-40 1.25Gb/s BiDi SFP Tx1310/Rx1490nm 40KM 1.25Gbps Tx1310/Rx1490 40 km SMF -3~2 ﹤ -23 Optional 0~70
ABL43-24-40 1.25Gb/s BiDi SFP Tx1490/Rx1310nm 40KM 1.25Gbps Tx1490/Rx1310nm 40 km SMF -3~2 ﹤ -23 Optional 0~70
ABL45-24-80 1.25Gb/s BiDi SFP Tx1490/Rx1550nm 80KM 1.25Gbps Tx1490/Rx1550nm 80 km SMF 0~5 ﹤ -24 Optional 0~70
ABL54-24-80 1.25Gb/s BiDi SFP Tx1550/Rx1490nm 80KM 1.25Gbps Tx1550/Rx1490nm 80 km SMF 0~5 ﹤ -24 Optional 0~70
ABL45-24-120 1.25Gb/s BiDi SFP Tx1490/Rx1550nm 120KM 1.25Gbps Tx1490/Rx1550nm 120 km SMF 1~5 ﹤ -32 Optional 0~70
ABL54-24-120 1.25Gb/s BiDi SFP Tx1550/Rx1490nm 120KM 1.25Gbps Tx1550/Rx1490nm 120 km SMF 1~5 ﹤ -32 Optional 0~70
ASFxx-24-40 SFP 1000Base-EX CWDM 40KM 1.25Gbps CWDM 40 km SMF -5~0 ﹤ -22 Optional 0~70
ASFxx-24-80 SFP 1000Base-ZX CWDM 80KM 1.25Gbps CWDM 80 km SMF 0~4 ﹤ -25 Optional 0~70
ASFxx-24-120 SFP 1000Base-EZX CWDM 120KM 1.25Gbps CWDM 120 km SMF 1~5 ﹤ -32 Optional 0~70
ASFDxx-24-40 SFP 1000Base-EX DWDM 40KM 1.25Gbps DWDM 40 km SMF     Optional 0~70
ASFDxx-24-80 SFP 1000Base-ZX DWDM 80KM 1.25Gbps DWDM 80 km SMF -2~3 ﹤ -30 Optional 0~70
